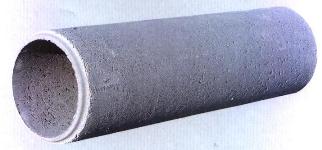

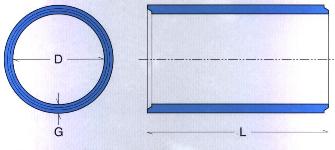

| DIAMETRO (D) | |
|---|---|
| 30 cms. | |
| LONGITUD (L) | 120 cms. |
| GROSOR (G) | 3’50 cms. |
| KGS. (ud.) | 90 Kg. |
| KGS. (ml.) | 75 Kg. |
| FICHA |  |
| 35 cms. | |
| LONGITUD (L) | 120 cms. |
| GROSOR (G) | 4’00 cms. |
| KGS. (ud.) | 115 Kg. |
| KGS. (ml.) | 96 Kg. |
| FICHA | |
| 40 cms. | |
| LONGITUD (L) | 120 cms. |
| GROSOR (G) | 4’50 cms. |
| KGS. (ud.) | 145 Kg. |
| KGS. (ml.) | 121 Kg. |
| FICHA | |
| 50 cms. | |
| LONGITUD (L) | 110 cms. |
| GROSOR (G) | 5’00 cms. |
| KGS. (ud.) | 192 Kg. |
| KGS. (ml.) | 175 Kg. |
| FICHA | |
| 60 cms. | |
| LONGITUD (L) | 100 cms. |
| GROSOR (G) | 5’50 cms. |
| KGS. (ud.) | 240 Kg. |
| KGS. (ml.) | 240 Kg. |
| FICHA | |
| 80 cms. | |
| LONGITUD (L) | 100 cms. |
| GROSOR (G) | 6’50 cms. |
| KGS. (ud.) | 392 Kg. |
| KGS. (ml.) | 392 Kg. |
| FICHA | |
| 100 cms. | |
| LONGITUD (L) | 100 cms. |
| GROSOR (G) | 8’50 cms. |
| KGS. (ud.) | 570 Kg. |
| KGS. (ml.) | 570 Kg. |
| FICHA | |
| 120 cms. | |
| LONGITUD (L) | 100 cms. |
| GROSOR (G) | 9’00 cms. |
| KGS. (ud.) | 780 Kg. |
| KGS. (ml.) | 780 Kg. |
| FICHA | |
| DIAMETRO (D) | LONGITUD (L) | GROSOR (G) | KGS. (ud.) | KGS. (ml.) | FICHA |
|---|---|---|---|---|---|
| 30 cms. | 120 cms. | 3’50 cms. | 90 Kg. | 75 Kg. | |
| 35 cms. | 120 cms. | 4’00 cms. | 115 Kg. | 96 Kg. | |
| 40 cms. | 120 cms. | 4’50 cms. | 145 Kg. | 121 Kg. | |
| 50 cms. | 110 cms. | 5’00 cms. | 192 Kg. | 175 Kg. | |
| 60 cms. | 100 cms. | 5’50 cms. | 240 Kg. | 240 Kg. | |
| 80 cms. | 100 cms. | 6’50 cms. | 392 Kg. | 392 Kg. | |
| 100 cms. | 100 cms. | 8’50 cms. | 570 Kg. | 570 Kg. | |
| 120 cms. | 100 cms. | 9’00 cms. | 780 Kg. | 780 Kg. | |
POZOS

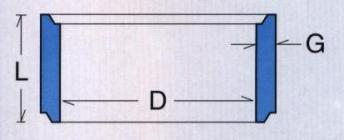

ANILLOS
| DIAMETRO (D) | |
|---|---|
| 100 cms. | |
| LONGITUD (L) | 50 cms. |
| GROSOR (G) | 8'50 cms. |
| KGS. (ud.) | 290 Kg. |
| FICHA | |
| 100 cms. | |
| LONGITUD (L) | 100 cms. |
| GROSOR (G) | 8'50 cms. |
| KGS. (ud.) | 570 Kg. |
| FICHA | |
| 120 cms. | |
| LONGITUD (L) | 50 cms. |
| GROSOR (G) | 9 cms. |
| KGS. (ud.) | 390 Kg. |
| FICHA | |
| 120 cms. | |
| LONGITUD (L) | 100 cms. |
| GROSOR (G) | 9 cms. |
| KGS. (ud.) | 776 Kg. |
| FICHA | |
| DIAMETRO (D) | LONGITUD (L) | GROSOR (G) | KGS. (ud.) | FICHA |
|---|---|---|---|---|
| 100 cms. | 50 cms. | 8'50 cms. | 290 Kg. | |
| 100 cms. | 100 cms. | 8'50 cms. | 570 Kg. | |
| 120 cms. | 50 cms. | 9 cms. | 390 Kg. | |
| 120 cms. | 100 cms. | 9 cms. | 776 Kg. | |

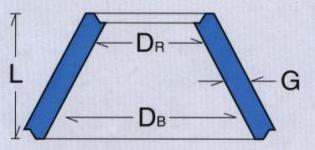

CONOS
| DIAMETRO (D) | |
|---|---|
| 100 cms. | |
| DIAMETRO (R) | 60 cms. |
| LONGITUD (L) | 80 cms. |
| GROSOR (G) | 8'50 cms. |
| PESO | 440 Kg. |
| FICHA | |
| 120 cms. | |
| DIAMETRO (R) | 60 cms. |
| LONGITUD (L) | 80 cms. |
| GROSOR (G) | 9 cms. |
| PESO | 440 Kg. |
| FICHA | |
| DIAMETRO (D) | DIAMETRO (R) | LONGITUD (L) | GROSOR (G) | PESO | FICHA |
|---|---|---|---|---|---|
| 100 cms. | 60 cms. | 80 cms. | 8'50 cms. | 440 Kg. | |
| 120 cms. | 60 cms. | 80 cms. | 9 cms. | 440 Kg. | |
CONOS ASIMÉTRICOS
| DIAMETRO (D) | |
|---|---|
| 100 cms. | |
| DIAMETRO (R) | 60 cms. |
| LONGITUD (L) | 100 cms. |
| GROSOR (G) | 9 cms. |
| PESO | 500 Kg. |
| FICHA | |
| 120 cms. | |
| DIAMETRO (R) | 60 cms. |
| LONGITUD (L) | 80 cms. |
| GROSOR (G) | 9 cms. |
| PESO | ... Kg. |
| FICHA | |
| DIAMETRO (D) | DIAMETRO (R) | LONGITUD (L) | GROSOR (G) | PESO | FICHA |
|---|---|---|---|---|---|
| 100 cms. | 60 cms. | 100 cms. | 9 cms. | 500 Kg. | |
| 120 cms. | 60 cms. | 80 cms. | 9 cms. | ... Kg. | |

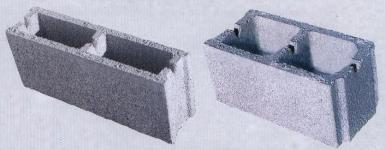

BLOQUES
| ANCHO (A) | |
|---|---|
| 20 cms.. | |
| ALTURA (H) | 12 cms. |
| LONGITUD (L) | 48 cms. |
| KGS. (ud.) | 12 Kg |
| FICHA | |
| 20 cms. | |
| ALTURA (H) | 20 cms. |
| LONGITUD (L) | 40 cms. |
| KGS. (ud.) | 16'5 Kg |
| FICHA | |
| ANCHO (A) | ALTURA (H) | LONGITUD (L) | KGS. (ud.) | FICHA |
|---|---|---|---|---|
| 20 cms.. | 12 cms. | 48 cms. | 12 Kg | |
| 20 cms. | 20 cms. | 40 cms. | 16'5 Kg | |
BORDILLOS
BORDILLO 1
| BASE (B) | |
|---|---|
| 22 cms. | |
| ALTURA (H) | 18 cms. |
| LONGITUD (L) | 50 cms. |
| KGS. (ud.) | 32 Kg. |
| KGS. (ml.) | - |
| FICHA | |
| BASE (B) | ALTURA (H) | LONGITUD (L) | KGS. (ud.) | KGS. (ml.) | FICHA |
|---|---|---|---|---|---|
| 22 cms. | 18 cms. | 50 cms. | 32 Kg. | - | |
BORDILLO 2
| BASE (B) | |
|---|---|
| 7 cms. | |
| ALTURA (H) | 20 cms. |
| LONGITUD (L) | 50 cms. |
| KGS. (ud.) | - |
| KGS. (ml.) | 34 Kg |
| FICHA | |
| 7 cms. | |
| ALTURA (H) | 20 cms. |
| LONGITUD (L) | 50 cms. |
| KGS. (ud.) | - |
| KGS. (ml.) | 34 Kg |
| FICHA | |
| BASE (B) | ALTURA (H) | LONGITUD (L) | KGS. (ud.) | KGS. (ml.) | FICHA |
|---|---|---|---|---|---|
| 7 cms. | 20 cms. | 50 cms. | - | 34 Kg | |
| 7 cms. | 20 cms. | 50 cms. | - | 34 Kg | |
BORDILLO 3
| BASE (B) | |
|---|---|
| 12 cms. | |
| ALTURA (H) | 25 cms. |
| LONGITUD (L) | 50 cms. |
| KGS. (ud.) | - |
| KGS. (ml.) | 64 Kg |
| FICHA | |
| BASE (B) | ALTURA (H) | LONGITUD (L) | KGS. (ud.) | KGS. (ml.) | FICHA |
|---|---|---|---|---|---|
| 12 cms. | 25 cms. | 50 cms. | - | 64 Kg | |
BORDILLO 4
| BASE (B) | |
|---|---|
| 34 cms. | |
| ALTURA (H) | 24 cms. |
| LONGITUD (L) | 50 cms. |
| KGS. (ud.) | - |
| KGS. (ml.) | 100 Kg |
| FICHA | |
| BASE (B) | ALTURA (H) | LONGITUD (L) | KGS. (ud.) | KGS. (ml.) | FICHA |
|---|---|---|---|---|---|
| 34 cms. | 24 cms. | 50 cms. | - | 100 Kg | |

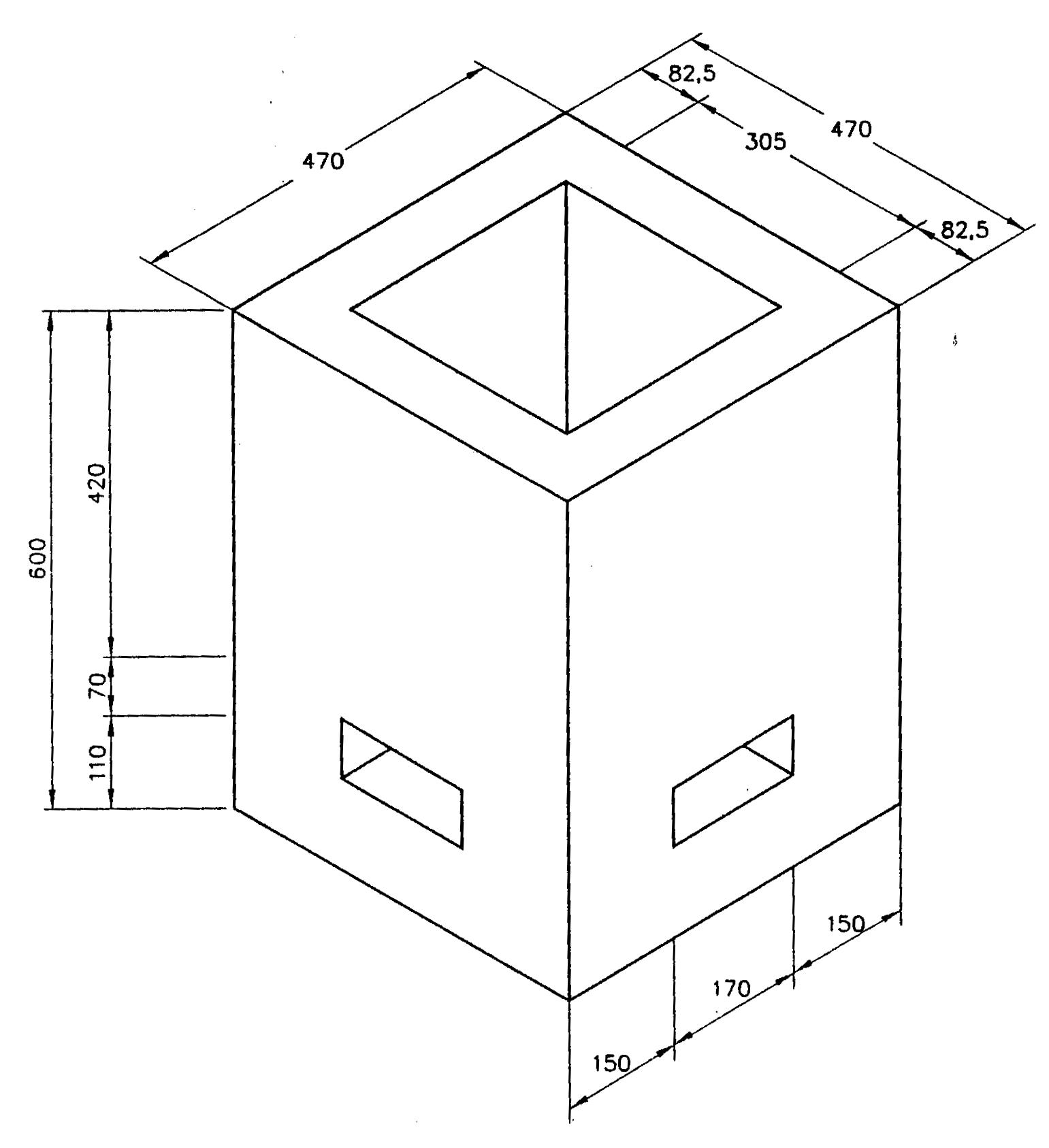

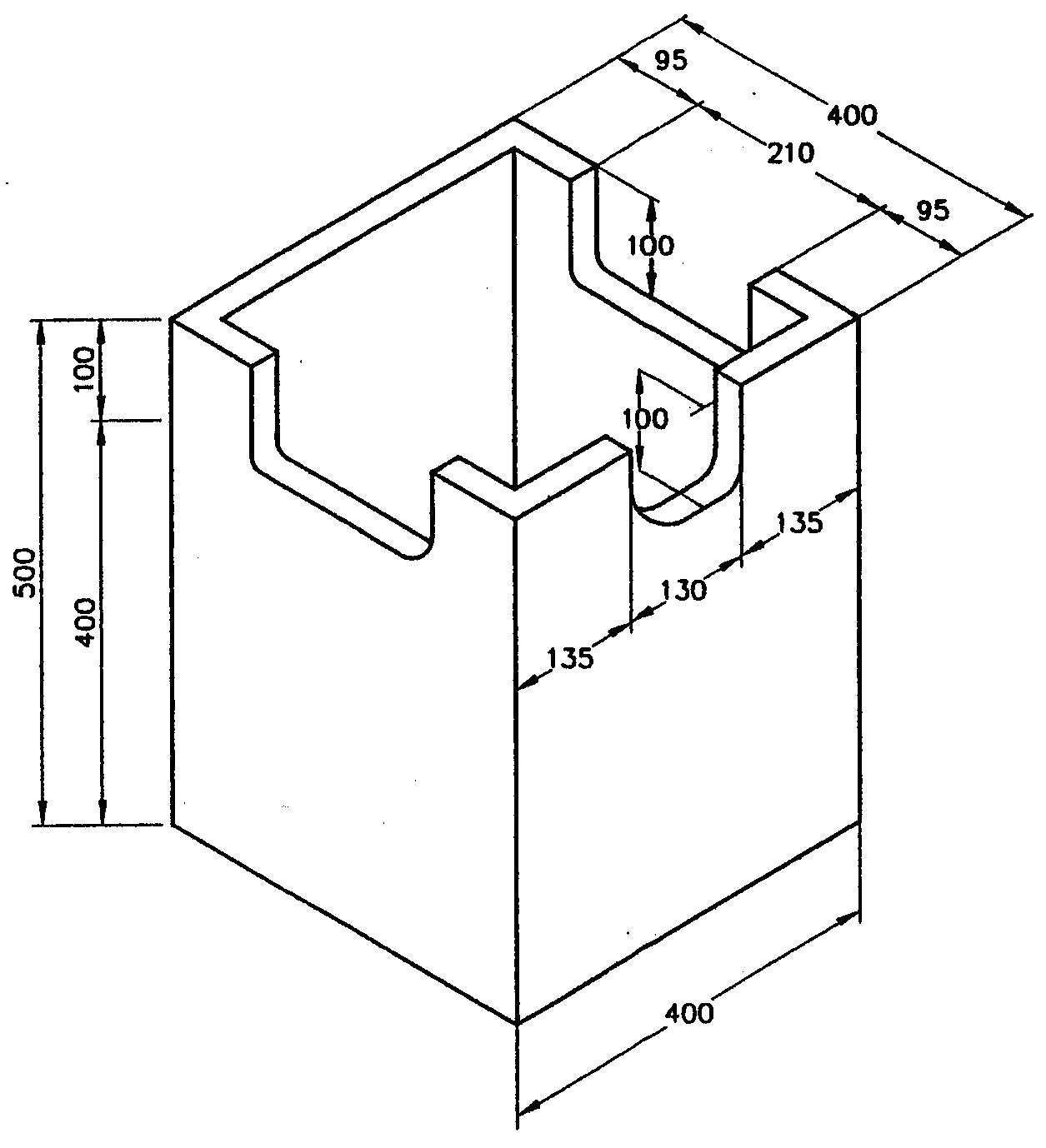

ARQUETAS
| BASE (B) | |
|---|---|
| 40 cms. | |
| ALTURA (H) | 40 cms. |
| LONGITUD (L) | 50 cms. |
| KGS. (ud.) | 55 Kg |
| KGS. (ml.) | - |
| FICHA | |
| 33 cms. | |
| ALTURA (H) | 33 cms. |
| LONGITUD (L) | 60 cms. |
| KGS. (ud.) | 198 Kg |
| KGS. (ml.) | - |
| FICHA | |
| BASE (B) | ALTURA (H) | LONGITUD (L) | KGS. (ud.) | KGS. (ml.) | FICHA |
|---|---|---|---|---|---|
| 40 cms. | 40 cms. | 50 cms. | 55 Kg | - | |
| 33 cms. | 33 cms. | 60 cms. | 198 Kg | - | |
